1. Commonly used screws, bicycle, turbine and small household appliances axis, service machine parts, quite suitable for this series of rolling teeth machining.
2. Equipped with precise vortex rod turbine combination, stable transmission, no problem of excessive clearance, to ensure screw accuracy.
3. Assembly precision transmission gear, after grinding, not only clear noise, durable, transmission without gap.
4. Dovetail oblique skateboard, when feeding rolling teeth, not loose, not jump, not easy to wear.
Specifications:

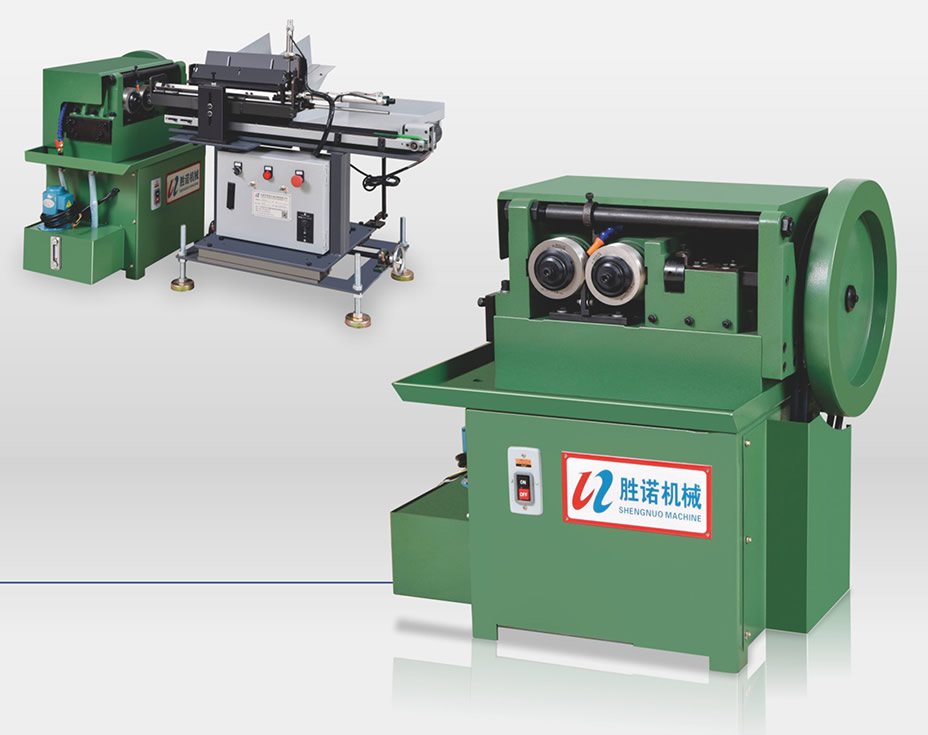

Energy efficiency Type | SN-3T |
Outer diameter of rolled screws | Ø2 ~ Ø8mm |
Pitch range | 0.25p to 1.250p |
Rolling length fixed, rolling through (unlimited length) dual useWheel rpm | 40 rpm |
Roller outer diameter | 100mm |
Roller bore | 50.5mm |
Roller thickness | 30mm |
The distance between bed surface and roller shaft center is | 90 to 115mm |
Rolling capacity | 4 ~ 27 |
Main engine motor | 1 HP(0.75KW) |
Hydraulic motor | 1/4HP(0.18KW) |
Weight (approx.) | 280 kgs |
Gross weight (approx.) | 350 kgs |
Mechanical body | 600 x 820 x 760 mm |
Packing size | 700 x 900 x 850 mm |
